Descrizione

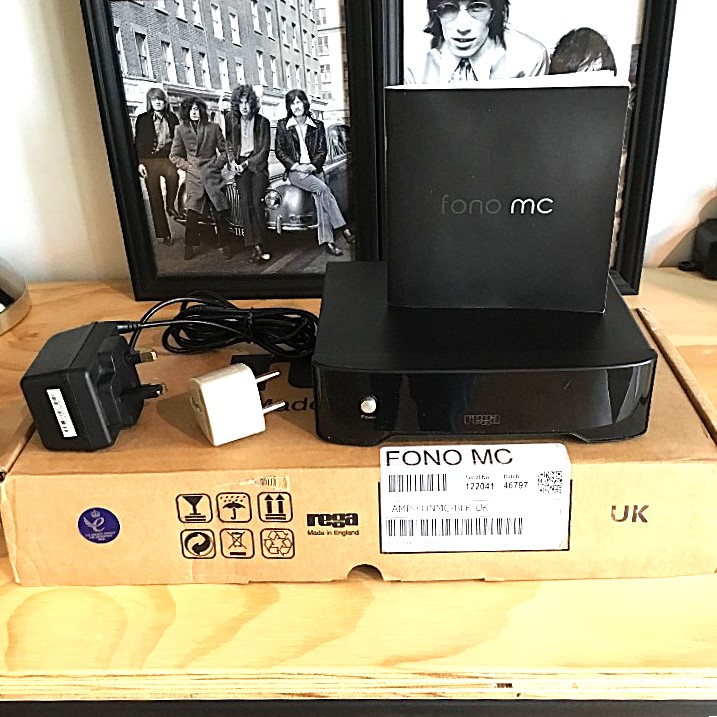

REGA FONO MC - Pre Phono solo MC. In ottime condizioni, versione con spina UK, fornito con adattatore ITA per piena compatibilità con rete italiana. Completo di imballo originale.
- FUNZIONAMENTO OOOOO
- ESTETICA OOOOO
Specifications
Output impedance = 200Ω
Recommended minimum output load resistance = 5K
Frequency response (50KΩ output load) = 13Hz (-3dB) to 100KHz (-0.3dB)
RIAA accuracy (50KΩ output load) = Better than +/-0.2dB 100Hz to 100KHz
Power requirements = 24V AC at 150mA maximum. Only to be used with Rega PS1.
Input sensitivity (for 200mV output)
4 off = 133uV
4 on = 67uV

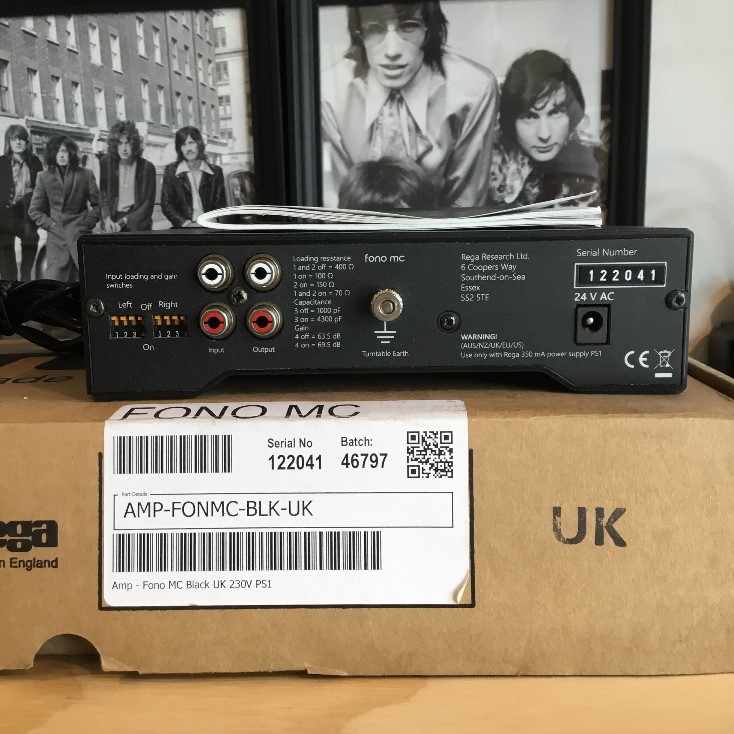

Input loading resistance
1 and 2 off = 400Ω
1 on = 100Ω
2 on = 150Ω
1 and 2 on = 70Ω
Input loading capacitance
3 off = 1000pF
3 on = 4300pF
Gain (at 1KHz)
4 off = 63.5dB
4 on = 69.5dB
Maximum input level (at 1KHz)
4 off = 6.7mV
4 on = 3.4mV
Load settings for adjustable MC stages
Impedance -100ohm
Capacitance - 1000pF
Gain setting - High ('On' position for Rega phono stages)
